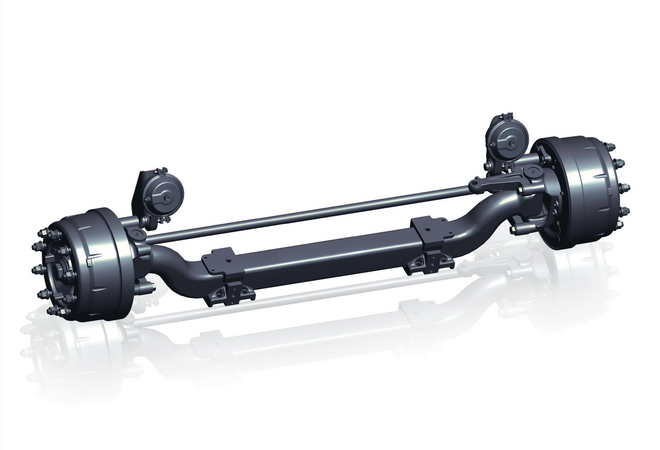

❶ High capacity hallow beam
❷ Premium seal design
❸ Robust knuckle and arms
❹ Large range of FUWA drum brakes
❺ Several configurations and sizes
❻ Optimized geometry for better handleability and tire life
❼ Available with ABS and automatic slack adjuster
❽ Strong bolted joints with special self locking bolts
● Load Capacity
Gross Axle Weight（On-Highway Application）：6500Kg
● Track（Other options are possible upon request）
2059mm
● Mounting Center
750～880mm
● King Pin Intersection（Other options are possible upon request）
1780mm
● Beam
Box Section：124x116mm
Wall Thickness：10mm
Drop：88mm
● Maximum Steering Angle（Inner wheel）
45°
● King Pin Inclination
6°
● Brakes（Other options are possible upon request）
410x180mm、410x150mm、420x180mm
● Wheel Mounting（Other options are possible upon request）
Φ335mm-10 studs M22x1.5
